Emergency stop button
BLA2 series buttons have a comfortable finger press position and switch toggle operation, function recognition, automatic grounding, anti-finger electric shock design
- Product Features
- Technical Parameter
-
BLA2 Series button features:
◾Comfortable finger press position and switch toggle operation, function recognition, automatic grounding, anti-finger electric shock design
◾Overall Model BLA2 Push-button head - Contact base assembly Push-button head is automatically held in the opening, the push-button head rotates - at an Angle, and snaps into the contact base
◾2 metal screws fixed shock-proof, automatic grounding, open terminal, no pre-loosening screws required
◾Chromium-plated metal head and mounting base, shock-proof screw terminal, robust, reliable, up to 3 million mechanical life, up to 50,000 hours of LED indicator life
◾Electrical function, up to 1-6 contact modules can be installed
◾High protection level IP65, quick and easy installation, final form is up to you
◾Contact base cassette installation without any tools, fast and firmBLA2 series button Important parameters：
Rated capacity AC15 380V/2.5A 220V/34 DC13 220V/0.27A 110V/0.55A Conventional heating current lth 10A Short circuit protection RT16-10A Rated insulation voltage Ui AC690V Class of protection Double knob, knob with lamp IP40, other IP65 Contact action Slow moving (normally closed or normally open); Normally closed contact is directly disconnected Impact resistance ≥10g Contact resistance ≤50mΩ Vibration resistance <500Hz，Amplitude approximation 1.0mm Electrical life More than 500,000 times Ambient temperature -45℃~+85℃ Mechanical life Self-rewinding button more than 1 million times
The rest is more than 500,000 timeswiring Screw pressing type, wiring capacity: min 1×0.5mm2; Max,

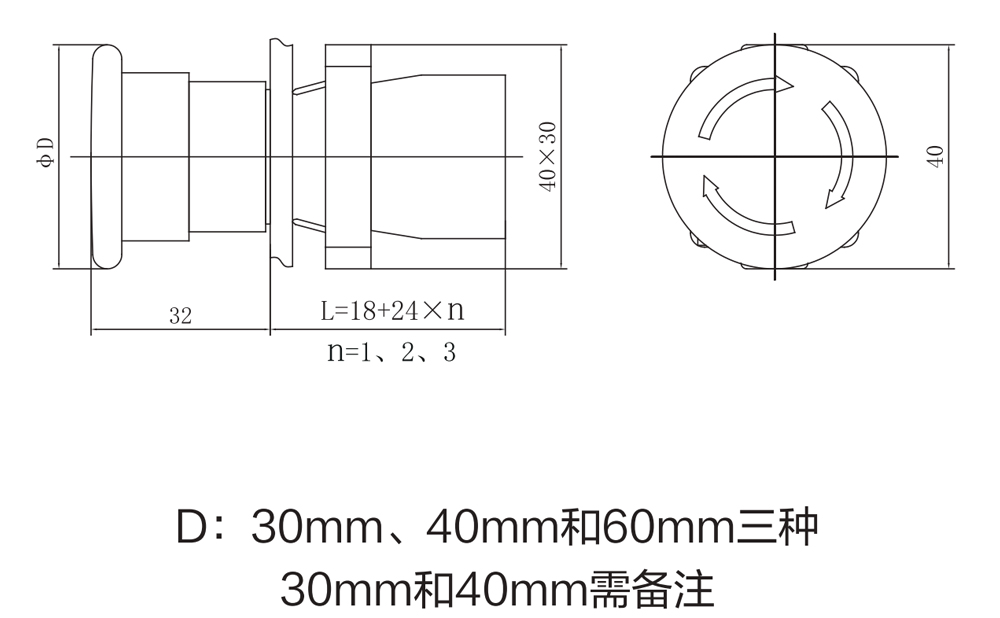

With terminal piece 2×1.5mm2, without terminal piece 1×2.5mm2Lamp module parameter Lamp type :LED lamp life :≥ 100,000 hours Voltage limit :0.85Ue≤U≤1.1Ue Product size:
-
BLA2 series button Important parameters：
Rated capacity AC15 380V/2.5A 220V/34 DC13 220V/0.27A 110V/0.55A Conventional heating current lth 10A Short circuit protection RT16-10A Rated insulation voltage Ui AC690V Class of protection Double knob, knob with lamp IP40, other IP65 Contact action Slow moving (normally closed or normally open); Normally closed contact is directly disconnected Impact resistance ≥10g Contact resistance ≤50mΩ Vibration resistance <500Hz，Amplitude approximation 1.0mm Electrical life More than 500,000 times Ambient temperature -45℃~+85℃ Mechanical life Self-rewinding button more than 1 million times
The rest is more than 500,000 timeswiring Screw pressing type, wiring capacity: min 1×0.5mm2; Max,
With terminal piece 2×1.5mm2, without terminal piece 1×2.5mm2Lamp module parameter Lamp type :LED lamp life :≥ 100,000 hours Voltage limit :0.85Ue≤U≤1.1Ue
